उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| नाम: | EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 फायर प्रदर्शन चैंबर ऑफ केबल्स | मॉडल: | जेडएल -1020 |
|---|---|---|---|
| जलता हुआ कोण: | 45° | आकार ओ/डी: | आकार ओ/डी 0.5 मिमी |
| तापमान संकल्प: | 1 डिग्री सेल्सियस | Standard Copper Block: | weight 10 ± 0 .05 g |
| आंतरिक आयाम: | डब्ल्यू*डी*एच = 300 मिमी*450 मिमी*1200 मिमी | Conform to standard: | IEC60332-1-1,IEC60332-1-2,IEC60695-11-2 |
| प्रमुखता देना: | Fire Performance Chamber Of Cables,EN 50575 Cable Fire Performance Chamber,EN 50399 Cable Fire Performance Chamber |
||

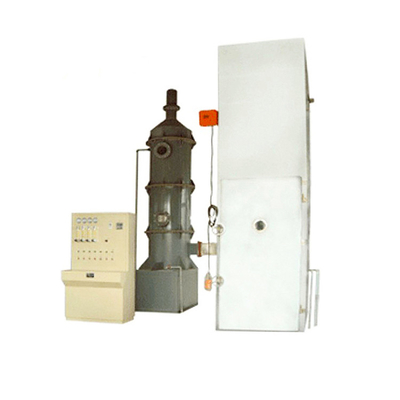

EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 Fire Performance Chamber of Cables
Application:
Cable tester is designed according to the relevant standard requirements of IEC60332-1-1 and IEC60332-1-2.
The Cable tester is composed by the test part and control part, using the integrated design, to facilitate the installation at the scene and debug.
The shell of the test chamber and the important components are all manufactured by stainless steel, resistant cigarettes and gas corrosion; The automatic degree of control system is high, has automatic ignition function, temperature and time figures show, so that the observation and records are facilitate and the use of it is stable and reliable
2.Technical parameter:
| Flame standard | IEC60695-11-2,1kw nominal pre-mixed flame |
| Burner Tube | IEC60695-11-2 Figure A |
| Burning Angle | 45° |
| The rmocouple | Type K (Ni/Cr - Ni/Al),200°~1050° |
| The Size O/D | 0.5mm |
| Temperature Resolution | 1ºC |
| Standard Copper Block | weight 10 ± 0 .05 g before drilling. Cu-ETP |
| Gas Supply | Propane,min.95% purity |
| Input Power | 220 V 50 Hz 3A or 115 V 60HZ Optional |
| Inner Dimensions | W*D*H=300mm*450mm*1200mm |
| Conform to standard | IEC60332-1-1,IEC60332-1-2,IEC60695-11-2 |
