उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| अधिकतम भार: | 5KN,10KN,20KN | प्रभावी माप सीमा: | 0.2%~100%(1ग्रेड)/0.4%~100%(0.5 ग्रेड) |
|---|---|---|---|
| सटीकता को मापना: | मान ±1% प्रदर्शित करें/मान ±0.5% प्रदर्शित करें | परीक्षक संकल्प: | अधिकतम भार 1/200000 |
| प्रभावी परीक्षण चौड़ाई: | 390 मिमी | प्रभावी तन्यता स्ट्रोक: | 800 मिमी; 1000 मिमी; 1200 मिमी |
| परीक्षण गति की सीमा: | 0.001~200मिमी/मिनट;500मिमी/मिनट (1000मिमी/मिनट विकल्प) | विस्थापन माप की सटीकता: | सहनशीलता: ±0.5%/सहिष्णुता: ±0.2% |
| विरूपण माप प्रणाली: | न्यूनतम अवधि: 10 मिमी, अधिकतम सीमा: 800 मिमी | मापी गई विकृति की सटीकता: | सहनशीलता: ±0.5% |
| अधिभार संरक्षण: | अधिभार 10%, स्वचालित सुरक्षा | मशीन आकार: | 80x55x220 सेमी |
| बिजली की आपूर्ति: | 220V, 50 हर्ट्ज | शक्ति: | 0.4kW |
| मशीन वजन: | 250 किग्रा | ||
| प्रमुखता देना: | 10kN Universal Testing Machine,20kN Tensile Strength Testing Machine,50kN Computer Universal Tensile Strength Testing Machine |
||

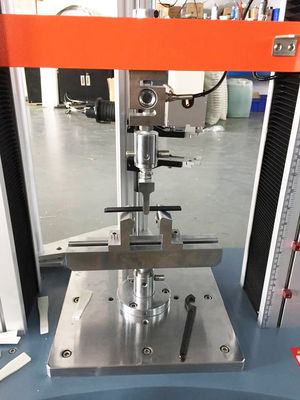

This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.
Widely used in quality control across multiple industries including:
GB/T16491-1996 Electronic Universal Testing Machine
| Model | ZL-8001 |
|---|---|
| Max load | 5KN,10KN, 20KN |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Power supply | 220V, 50HZ |
| Machine weight | Approximately 250 Kg |

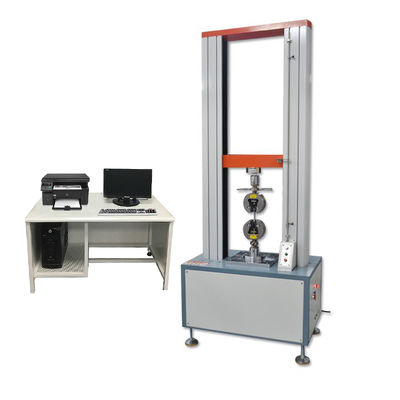

The ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission for accurate load speed and force measurement. It features high accuracy and sensitivity for load, displacement measurement and control, capable of constant-velocity loading and displacement testing. Simple to operate, it's ideal for quality control in production lines, primarily for testing non-metallic and metallic materials with loads less than 2 tons.
Features photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software combining measurement, control, calculation and storage. Automatically calculates stress, rate of elongation, tensile strength, elastic modulus, and statistical results. Records maximum points, breaking points, and designated values. Computer displays dynamic testing curves and processes data for post-test analysis.
