उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| अधिकतम भार: | 5KN,10KN, 20KN, अनुकूलित किया जा सकता है | प्रभावी माप सीमा: | 0.2%~100%(1ग्रेड)/0.4%~100%(0.5 ग्रेड) |
|---|---|---|---|
| सटीकता को मापना: | मान ±1% प्रदर्शित करें/मान ±0.5% प्रदर्शित करें | परीक्षक संकल्प: | अधिकतम भार 1/200000 |
| प्रभावी परीक्षण चौड़ाई: | 390 मिमी | प्रभावी तन्यता स्ट्रोक: | 800 मिमी; 1000 मिमी; 1200 मिमी |
| परीक्षण गति की सीमा: | 0.001 ~ 200 मिमी / मिनट; 500 मिमी / मिनट (1000 मिमी / मिनट विकल्प है) | विस्थापन माप की सटीकता: | सहिष्णुता: ± 0.5% / सहनशीलता: ± 0.2% |
| विरूपण माप प्रणाली: | न्यूनतम अवधि: 10 मिमी, विरूपण की अधिकतम सीमा: 800 मिमी | मापी गई विकृति की सटीकता: | सहनशीलता:±0.5% |
| अधिभार संरक्षण: | अधिभार 10%, स्वचालित सुरक्षा | मशीन आकार: | 80x55x220 सेमी (लंबाई*चौड़ाई*ऊंचाई) |
| बिजली की आपूर्ति: | 220V, 50 हर्ट्ज | शक्ति: | 0.4kW |
| मशीन वजन: | 250 किग्रा | ||
| प्रमुखता देना: | 800mm Tensile Stroke Universal Testing Machine,390mm Testing Width Universal Testing Machine,Two-Year Warranty Foam IFD Hardness Tester |
||

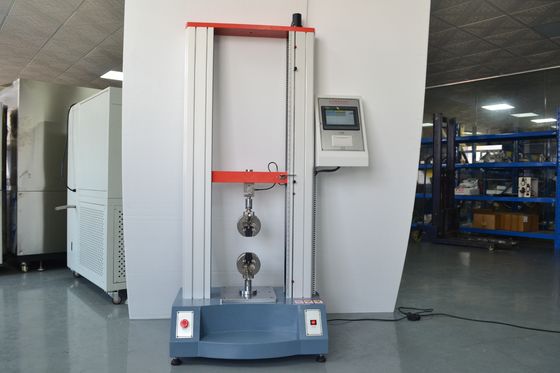

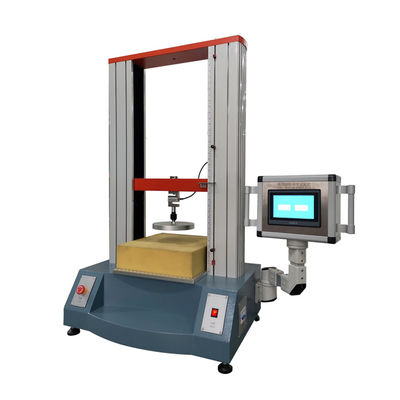

| Model | ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
|---|---|
| Max load | 5KN,10KN, 20KN, Can be customized |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor | Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Return back | Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

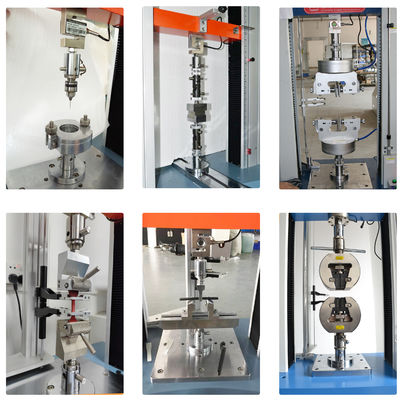

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm (length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depending on different demand of force, using different motor) |
| Machine weight | (about) 250 Kg |
| Units | Kg, N, LB, TON, can be exchanged |
